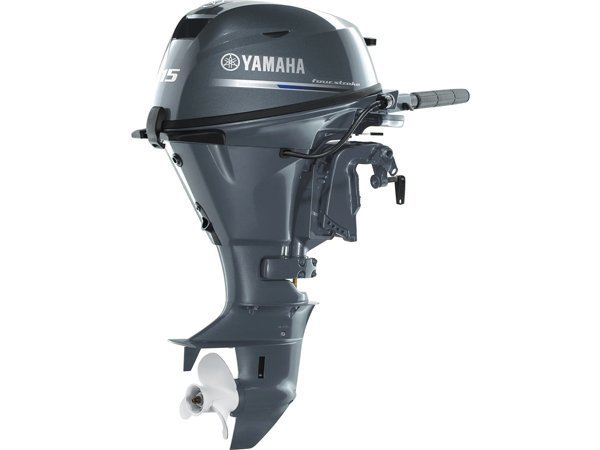

2020 Yamaha 15 HP F15LEHA Outboard Motor

Features & Benefits

• Head Of The Class: The powerful, new twin-cylinder SOHC design boasts the largest displacement in its class.
• Easy Does It: Maintenance is a breeze with easily accessible oil and fuel system components.
• Front & Centre: Convenient front-mounted controls facilitate smooth shifting, easy, shallow water drive and single action steering friction adjustment.
• Carry On: The carrying handle and brims are designed for easier carrying, mounting, and removing the outboard motor.
• Anti-Corrosion Protection: Yamaha’s unique YDC-30 aluminium alloy protects the engine’s exterior parts, while a zinc coating, high-quality stainless steel and 5-stage exterior coating offers long-lasting protection inside and out.

Engine

• Engine Type: Four_Stroke, SOCH In-Line 2 cylinders
• Displacement: 362cc (22.1ci)
• Bore & Stroke: 63.0×58.1mm (2.48×2.29 in.)
• RPM Range: 5000-6000
• Compression Ratio: 9.3
• Induction System: SOHC
• Alternator Output: 12V-10 Amps (6.5Amp @ 1000rpm)
• Fuel Delivery: Carburetor (1)
• Starting: Manual or electric
• Ignition: CDI Mircocomputer
• Lubrication: Wet sump
• Degree of Trim/Tilt: 4 positions/71 deg.
• Exhaust: Through Propeller Hub
• Cooling: Water/Thermostatic Control
• Gear Shift: F/N/R
• Gear Ratio: 13/27 (2.08)

Fuel & Lubrication

• Recommended Fuel: Regular Unleaded
• Recommended Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
• Oil Capacity: 1.6L (1.7 qt)

Dimensions

• Shaft Length: 20″
• Dry Weight: 50 kg (111 lb.) (MSH)
